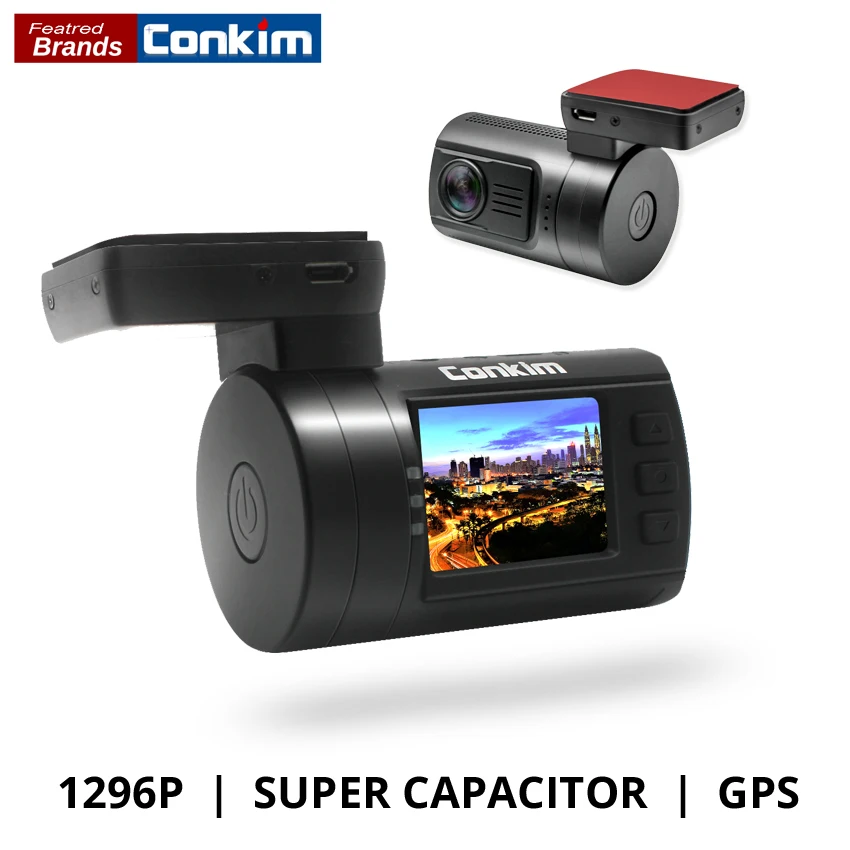

Conkim Ambarella A7 Dash Camera Car DVR With GPS 1296P 1080P Full HD Auto Video Recorder LDWS Mini 0806s Upgrade From Mini 0806


Best Cycling High Rating Product provide car dvr with gps, car dvr, camera car dvr Excellent Cheap Conkim Ambarella A7 Dash Camera Car DVR With GPS 1296P 1080P Full HD Auto Video Recorder LDWS Mini 0806s Upgrade From Mini 0806. Get 36% discount Now! Now US $77.15/piece. Hurry buy Now before back to normal price! Normal price US $120.54. Dont waste your time. Buy Now only in Conkim Official Store Trusted Seller Store!



Ambarella A7LA50 Chipset, OV4689 4MP CMOS sensor
Video Resolution:
2560*1080@30FPS, 1296P@30FPS, 1080P@45FPS, 1080P@30FPS HDR, 720P@60FPS, 720P@30FPS

GPS/SPEED/DRIVER NUMBER Stamping The dash camera can record your driving trace and stamp the GPS data, speed and stamping the speed data, driver number or customized phrase on video.

Loop Recording The camera supports automatically loop recording when the card is full.

LDWS DETECTION The camera will warn when it detects a lane departure, including normal planned lane departures FCWS (Forward Collision Warning System) share the same switch with LDWS (Lane Departure Warning System)


Support HDMI and AV-out transmission

Sticker Mount with 2 °wedges +4 ° wedges When you need the camera offset from top center of windshield, you can use the wedges to adjust the camera view direction.
There are two wedges attached in accessories bag, one is 2 °angle and another is 4 °angle. With those you can mount the dash camera at a 2 °,4 ° or with both together 6° offset location.

CPL filter (Optional) Reduce the relection from shiny surface like vegetation, sweaty skin, water surface, glass, road and let the natural color come through at the same time. Some of the light coming from the sky is also polarized to give a more dramatic sky and high contrast clouds, rendering outdoor scenes crisper with deeper color tones. Align the white line on CPL with the dot on camera and rotate for best reflection reducing effect. CPL filter is highly recommend for Mini 0906 camera. You may also buy extra CPL, .

Built in G-sensor The G-sensor is used to detect the 3-axis impacting forces (vibration acceleration). If any impact over the threshold value is detected, the current recording file will be locked to avoid being over-writen.

Built in Super Capacitor, no battery Mini 0806s with super capacitor tech. it can't be turned on until is recharged by car charger. Safty confficient is higher than Mini 0806. It's working temperature -25℃~65℃ More stable in Winter or Summer. Longer lifetime than battery version.


The parking guard hardwire kit can be used as a high quality common hardwire kit as there is no Parking Guard function on 0806s camera.

Upgrade Mini 0806S Car DVR Dash Camera 1296P HDR Ambarella A7 OV4689 GPS ADAS Low-voltage Protection Video Recorder Capacitor

Set 1: Mini 0806s with GPS standard package
Set 2: Mini 0806s with GPS standard package + 24mm CPL filter
Set 3: Mini 0806s with GPS standard package + 24mm CPL filter + Top quality hard wire kit
Set 4: Mini 0806s with GPS standard package + 24mm CPL filter + OBD hard wire kit
Set 5: Mini 0806s without GPS standard package


Mini 0806S is upgrade version from Mini 0806, using same housing but different motherboard. Main difference as followed:

  • Remove a micro SD card
  • Reduce RF interference
  • Improve GPS moduel to increase GPS signal
  • Add AV-Out
  • Add Reset Button
  • Using super capacitor, not built in battery, more safer in hot weather
  • Improve camera stabilization
  • Low voltage protection

Compare with Mini 0806:



Micro SD card slot A is removed on Mini 0806s, add AV-out.

R button: Reset button


Micro SD slot B and HDMI interface are same.

GPS pin connetor is improved so that increase the GPS signal and quality is more reliable.

Capacitor VS Battery Mini 0806s with super capacitor tech. it can't be turned on until is recharged by car charger. Safty confficient is higher than Mini 0806. It's working temperature -25℃~65℃ More stable in Winter or Summer. Longer lifetime than battery version. Mini 0806 built in 3.7V 200mAhlithium battery. It can work for few minutes constantly if it is not recharged by car charger. Battery is easy to be aging if it's too hot in Summer for long time; and in winter, it maybe frozen.

Inside motherboard picture for reference: Features:
  1. Patent industrial design
  2. Ultra MINI size
  3. Display Size: 1.5 inch TFT
  4. Cinema Mode 2560*1080 (21:9) 30fps
  5. FullHD 1296P@30fps, 1080P@45fps, 720P@60fps
  6. Support HDR (High-Dynamic-Range) for superior low light performance, 1080P@30fps HDR
  7. Video Format: MOV (H.264)
  8. Camera Pixel: 4 Million Pixel CMOS
  9. 135 degree Viewing Angle
  10. Camera rotating 160 degree for reverse mounting
  11. Built-in G-sensor
  12. Support HDMI and AV-out Function, connect to TV for Video and Photo viewing
  13. Support Route Tracking via GPS (with GPS mount base)
  14. Support 128GB Maximum TF cards recording (Not include)
  15. Support Movement Detection
  16. Support LDWS and FCWS
  17. Seamless Link Loop Recording
  18. Support Video Protection, prevent overwrite important video
  19. Support Audio On/Off while Video Recording
  20. Battery: 5V 2.5F super capacitor
  21. Adapter: MicroUSB 5PIN Port

Lens Visual angle

Wide angle 135 degree

Lens optical parameter

6G, F2.0, f2.5mm

Lens rotation angle

160 degree

Lens Object Distance

0.5m~infinity

Video format

MOV

Video resolution and transfer rate

2560*1080@30FPS/ 1296P@30FPS/ 1080P@45FPS, 1080P@30FPS HDR/ 720P@60FPS, 720P@30FPS

Video compression format

H.264

Picture format

JPG

Picture pixels

Support 4MP MAX

Rear Camera

no

Sound record

Synchronous video and sound recording or shut sound recording

Sound Recording area

20m2

Display screen

1.5 inch HD TFT

External memory card

≥TF-Class6

Capacity of memory card

8G-84GB (official, can use up to128GB)

Battery Capacity

5V 2.5F super capacitor

MIC and Speaker

yes

AV IN

no

AV OUT

yes

HDMI interface

Yes, CTS1.3

USB interface

USB2.0 high-speed transmission

Circular loop recording

Support

Motion detection

Support

G-sensor Gravity Detection

Support

GPS track

YES, optional

LDWS (Lane Departure Warning System)

Support

Wide-angle Distortion Correction

Support

Night vision LED

no

Digital Zoom

no

ISO sensitivity

auto

Auto turn on and off

yes, auto turn on when engine start, auto turn off after engine cut off

reverse mounting&displaying&recording

Support

Video Player software

Registrator Viewer/Media player/KM player (codec pack needed)

Support Operation system

windows/Imac

USB Disk function

Support

Web camera

no

build in Language

Support multinational languages

Store temperature

-5F…+176F(-20℃…+80℃)

Operate temperature

14F…+140F(-10℃…+60℃)

Operate humidity

15%-80%RH







Click picture to learn more about optional accessories:

All Dear friend,Pls read me before you make order.
1 . Car DVR needs for outdoor use, search for satellite positioning! And when running Car DVR , connect the original car charger. 2 . we will declare the lower price on the invoice/bill to help avoid custom duty. If the parcel get strict inspected by custom. You still need to pay tax to clear custom. We won`t bear the customs taxes.If you have special requests,please contact us. 3 . In the option of shipment, if you choose DHL,not include DHL remote cost, custom duty, or any commission charged by dhl for custom clearance or warehouse storage cost. 4 . Please open the parcel in post officer`s presence,If the parcel damaged or empty(stolen),please ask the post office to provide official document,especially the claim request paper. 5 . If you have any problem with your equipment, pls check our FAQ link first,it may can help you solve the problem quickly.>>: 6 . About the Shipment,pls check this link.>> 7.About return and warranty policy, pls check this link. >>


Return Policy

If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.
N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.

Seller Service

On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).
