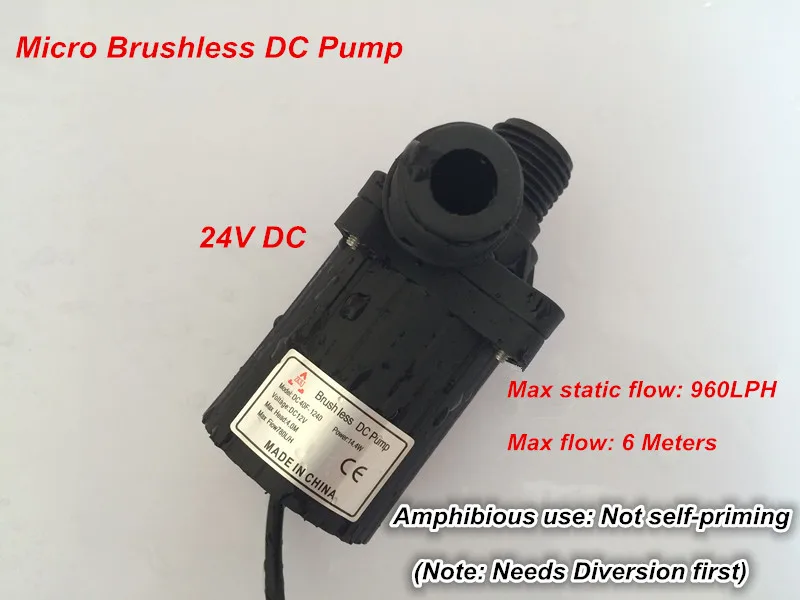

24V Micro Brushless DC Pump, 960LPH, 6M, 28.8W, Solar Submersible Pump, for Water cycle SYS, Low noise, 100% Waterproof
Feature
Small size, high efficiency, maintenance-free, low consumption, strong anti-jamming ability, stable performance
Brushless with no pollution, adopts high-performance ceramics shaft and high-precisioncarbon fiber sleeve together (stainless steel shaft optional for reducing cost long life span)
Stator and control circuits are completely sealed by epoxy resin completely separated with rotor, waterproof, avoided water-leakage problem which long exists in normal DC motor pump products
Protection functions can be customized such as lock protection, dry-run protection and so on.
Reduced the mortality to 0.05% after long-time study by R&D Dep.
Lift of pumps can be doubled when contact the pump in series.
Can be installed submersible or outside water (should below water level)
Offer ODM serve for pump and other controller system
Specifications
Dimension and weight: 88.5mmx64.8mmx43.8mm;220g
Installation dimension: 88.5mmx68mmx66mm;
External diameter of outlet: 1/2" threaded (M20mm)
External diameter of inlet: 1/2" threaded (M20mm)
Driving mechanism: Brushless, magnetic separation
Material of pump shell: ABS,PES/SPS/PPS/PA66+30%GF (Optional)
Condition of use: Can continuously work, submersible or land use (not self-priming)
Suitable medium: Water, oil, or normal acid/ alkaline liquids (Pre-test needed for special liquid)
Max working temperature: 60C
Power consumption: 2.5W~14.4W(can be customized within this range)
Rated voltage: 24Vdc
Working voltage range: 5Vdc ~ 24Vdc
Max load current: 1.2A
Max horizontal flow rate: 960LPH
Max static lift: 6M
Noise class: <40dB
Waterproof class: IP68(suitable for submersible installation)
Life span: Can be more than 30,000hrs
Power supply: Suitable for solar panel, batteries, adapter or other power module
Protection function: Water protection, dry-run protection, stall protection, stuck protection (functions are optional for customization)
Applications
Products can be widely used in electric automotive cooling systems, automatedequipmentwater cycle, water cooling and other electrical appliances, water dispenser,sanitary products, paper shredders, soilless cultivation, plumbing mattresses, air pump,aquarium fish tank, desktop crafts, foot bath, plumbing mattresses, water heaters, PC watercooling, watercooling fan devices, medical, pharmaceutical systems, chemical circulationsystems, coolingsystem, water-cooled air-conditioning, water cooling fan, mobile bath, solarfountain, solarcirculation system, water supply systems, small irrigation systems, watertreatment systems, automobile circulation systems, automotive heating systems, machinetools, householdappliances, kitchen appliances, bathroom products, hot water circulationsystem.
Package Included
1pcs x DC40F-2460 24Vdc Micro Brushless DC Pump
